FPV Drone Battery
  • Clicks:188922
  • Classification: Products and Projects Batteries, Drones, PCB
  • Brief description:FPV drone batteries emphasize instantaneous high current output, low internal resistance, and lightweight design, and can be customized according to capacity, rate, wire, and plug specifications.
 [←]  Camera Drone Battery
 [→]  Industrial Drone Battery

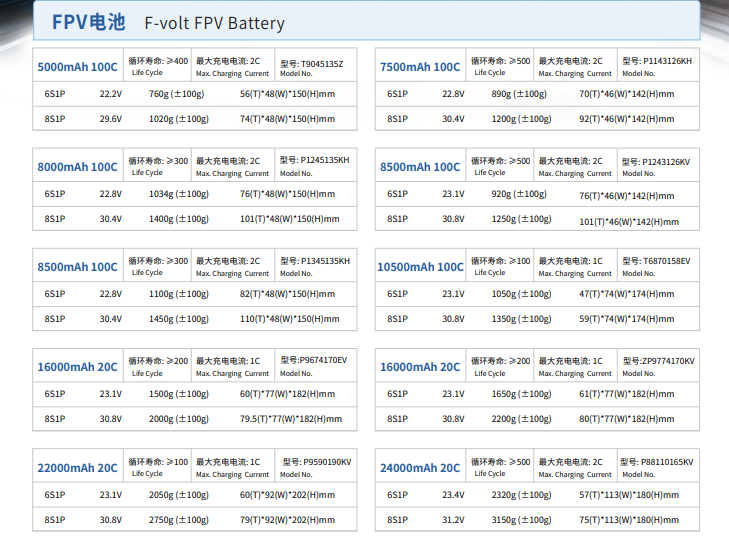

  • FPV long-distance flight large-capacity lithium battery (6S/8S/12S, 7~15 inch X-Class heavy-duty long-distance flight, soft-pack LiPo, high voltage HV3.8V, reserved compartment tolerance length - 3mm, width and thickness - 2mm, plug XT90-S spark-proof)
    1. 6S 22.2V/5000 & 75C/7000 & 25C/8000 & 25C/10000 & 15C/16000 & 15C/22000mAh & 10C, etc. (HV6S=22.8V, 7~10)
         "Inch mainstream long-distance navigation, with the largest market usage"
    2. 8S 29.6V/3500 & 150C/5600 & 95C/8000 & 25C/6200 & 150C/12000 & 20C/22000mAh & 10C, etc. (HV8S=30.4V, 8~13)
         (High voltage for long-distance travel, low current for extended battery life)
    3. 12S 44.4V/12000mAh & 12C/25000mAh & 10C/40000mAh & 8C, etc. (High-voltage heavy-duty 12~18 inch, large cargo transport/surveying and mapping FPV, ultra-large capacity)
    4. 4S ultra-large capacity 4S 14.8V/5100 & 100C/6000mAh & 100C, etc., (6~7 inch low-cost long-distance flight)
    5. Cylindrical 21700 high-capacity module (low-rate super long endurance, 7~9 inch power-saving long-distance travel, 6S2P most commonly used)
          6S2P 8400mAh (21700 lithium battery cell) / 10C continuous, 7.5-inch low-altitude flight endurance of 22~28 minutes
          6S4P 16800mAh/8C, 8-inch heavy-duty long-distance flight
    6. Fast Warehouse Allocation Formula (FPV High-Capacity Soft Packaging)
          Capacity (mAh) = Length × Width × Thickness × 0.088, with a capacity increase of 9% to 11% for high-voltage (HV) cells of the same size
          Example: Battery case 170×65×50 → 170×65×50×0.088=48820 ≈ 8200mAh, matched with 6S 8000mAh
    7. Model selection shorthand
         1.7-inch long-distance flight: 6S4600~5000mAh;
         2.8~9 inch X grade: 6S 6800~8000mAh / 8S 5600~6200mAh;
         3.10 inches and above heavy-duty: 6S10000+, 8S12000+, 12S with ultra-large capacity.

    The above data is for reference only. Please contact us and specify your aircraft model or battery parameter requirements, so that we can better adapt the battery for you.
