If the model is not indicated on the details page, please contact our company for consultation. We will recommend products that meet your needs based on your requirements.

Comparison Table of Universal Plant Protection Drones' Model+Battery Storage Empty Size → Precise Matching Capacity '
Self made modified plant protection (divided into three major voltages of 6S/12S/14S, with precise capacity matching according to the size of the battery compartment)

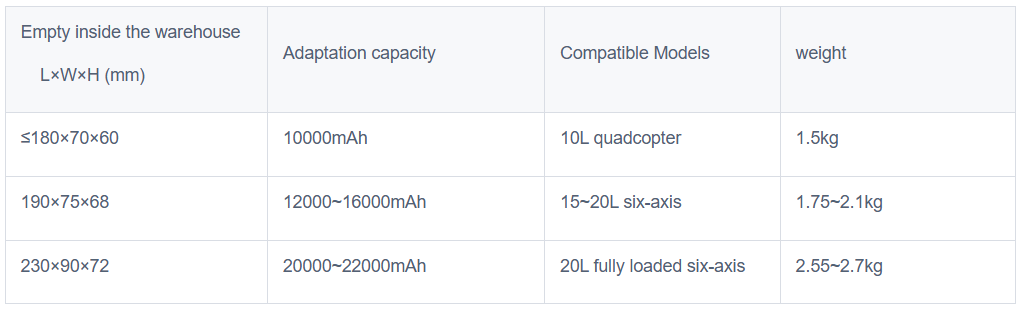

① 6S 22.2V (10~20L small four axis/six axis)

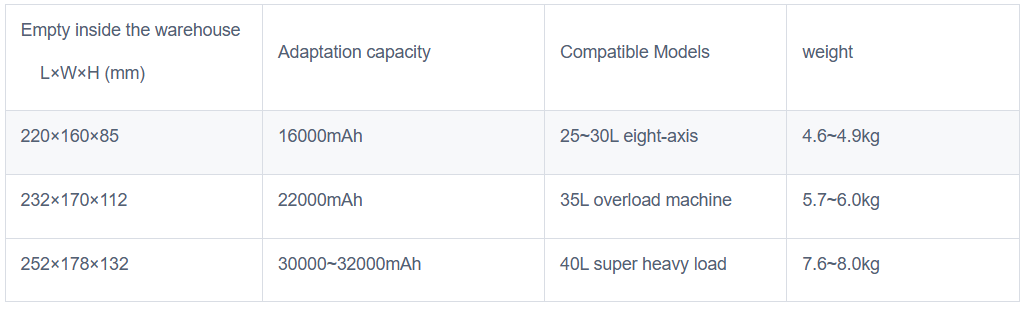

②12S 44.4V (25~40L medium to large homemade machine)

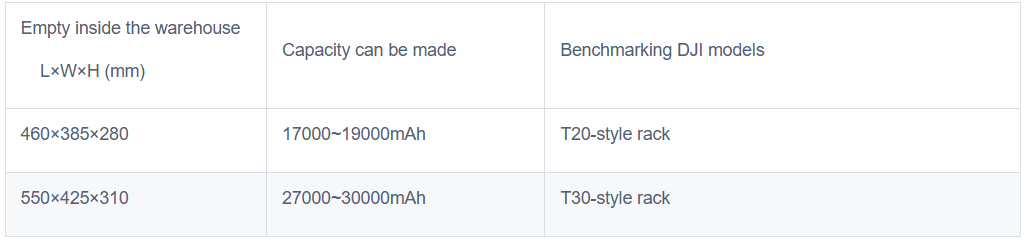

③14S 51.8V (imitation DJI T series self-made frame)


④24S 88.8V (heavy-duty self-made plant protection equipment for vehicles over 50L)
Storage unit 355×240×150→20000mAh; Storage unit 385×258×168→30000mAh

Quick self-test formula (user provides bin size, one-click capacity calculation)
Capacity (mAh) = Length × Width × Height × 0.085 (industry-standard K value, soft-pack lithium polymer), with a result ±5% variation
Example: Battery 200×80×70 → 200×80×70×0.085=9520 ≈ 9500mAh
V. Supplementary Information on Model Selection
To enhance battery life: For batteries of the same size, priority should be given to high-voltage cells (3.8V), with a capacity increase of 8% to 12%
Low-temperature regions in the north: reduce capacity by 5% for the same size, and reserve space for heating

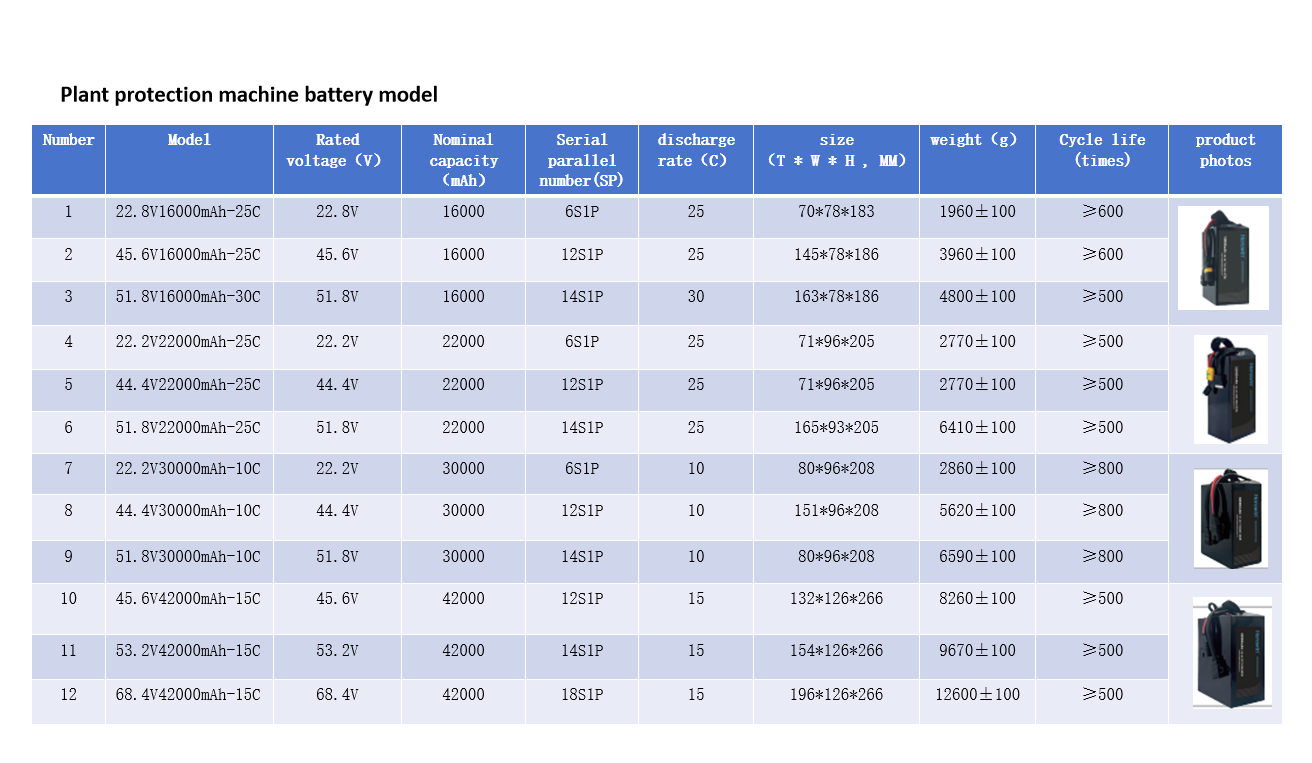

Battery models and specifications for some crop protection drones
