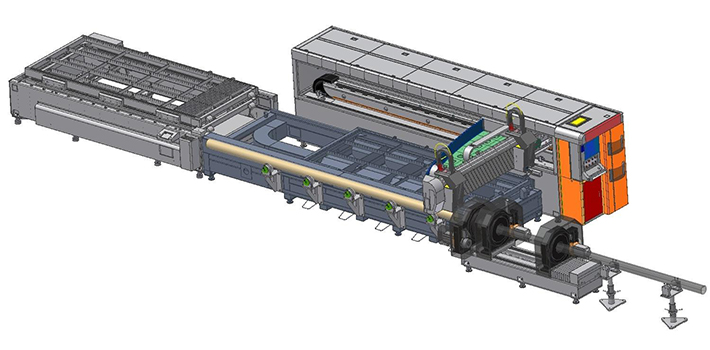

High-speed Laser for Cutting Plate or Pipe Machine

Clicks:5174
Classification: Products and Projects Laser Machinery
Brief description:High-speed laser cutting machine (169-210 m/min) is used as the main body to meet the needs of cutting flat plates and pipes. The high rigidity cantilever beam flying light path structure has good openness and proximity.

[←] 3-line Gantry CO2 Laser Cutting Machine

[→] Large-table Laser Machine for Plate or Pipe Cutting

Description:

Features:

■ High-speed laser cutting machine (169-210 m/min) is used as the main body to meet the needs of cutting flat plates and pipes.

■ The high rigidity cantilever beam flying light path structure has good openness and proximity.

■ Software and hardware of oil slotted sieve tube and oil perforation cartridge clamp can be selected to meet different application needs.

■ It can cut circular, rectangular and elliptical pipes with equal cross-section shape.

■ Optical compensation system is optional.

■ The sheet metal cutting table and the pipe cutting table can be flexibly configured for manual switching or automatic switching to meet the actual needs of different production.

Specifications:

Model	KM-CH01830	KM-CH1530	KM-CH1560
Processed range (mm×mm)	φ180×3000	Φ（60～180）×3000	Φ（60～180）×4000
Machining range (mm×mm)	-	3000×1500	6000×2200
X-axis stroke (mm)	3000	3000	6000
Y-axis stroke (mm)	180	1500	2200
Z-axis stroke (mm)	100
X-Y running speed (m/min)	169~210
X-Y positioning accuracy (mm/m)	±0.03
Repeated positioning accuracy (mm)	±0.02
Laser (W)	2500～6000
