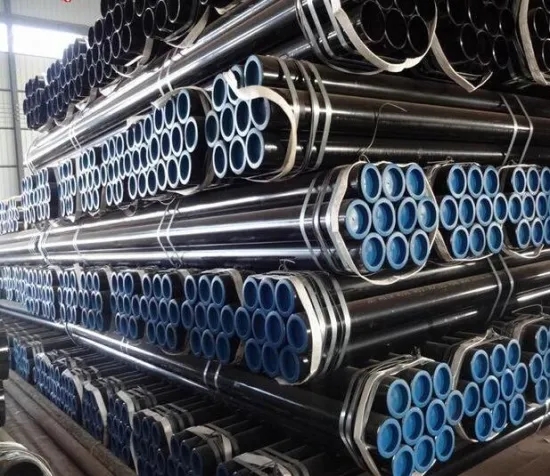

API 5L X56 Psl-2 Pipeline Tube
  • Clicks:3765
  • Classification: Products and Projects Steel Pipes & Fittings
  • Brief description:Model NO.: Outer Diameter: 1/8"-36"(10.3mm-914.4mm) Cross-Section Shape: Round Connection Type: Welding Inspection: SGS BV Trademark: CHEMMAH Transport Package: Black Paint, Bevel End, End Caps Specification: 168.3-406.4mm Origin: China HS Code: 73061900
 [←]  API-5L-X70-Psl-1-Pipeline-Pipe
 [→]  API-5CT-T95-Casing-Steel-Pipes
  • API 5L  PLS1   PLS2

    Manufacturing Technique:
    Cold Drawn Steel Pipe
    Hot Rolled Steel Pipe
    Hot Expanded Steel Pipe


    Steel Grade:
    B  X42  X46  X52  X56  X60  X65  X70

    Size:
    Outer Diameter: 1/8"-36"(10.3mm-914.4mm)
    Wall Thickness: 1.2mm-80mm
    Length: Random Length, SRL, DRL(4-14M)

    End: pland ends beveled ends

    Surface: Bare, Black, Lightly oiled, Hot dip galvanized, Varnish coating/Anti rust oil, Protective Coatings, 3PE

    Packing: Nude, Plastic/steel plugs in both ends, Hexagonal bundles of max. 2,000kg with several steel strips, Two tags on each bundle, Wrapped in waterproof paper, PVC sleeve, and sackcloth with several steel strips, Plastic caps.


    Third party inspection: SGS, BV, Lloyds etc.
    Standard  Steel Grade Chemical Components Mechanical Property
    C Mn Cr Mo P S Ni Cu Tensile Strength (Mpa) Yield Strength(Mpa)
    API Spec 5L PLS1   B ≤0.28 ≤1.20 ≤0.50 ≤0.15 ≤0.030 ≤0.030 ≤0.50 ≤0.50 ≥415 ≥245
    X42 ≤0.28 ≤1.30 ≤0.50 ≤0.15 ≤0.030 ≤0.030 ≤0.50 ≤0.50 ≥415 ≥290
    X46 ≤0.28 ≤1.40 ≤0.50 ≤0.15 ≤0.030 ≤0.030 ≤0.50 ≤0.50 ≥435 ≥320
    X52 ≤0.28 ≤1.40 ≤0.50 ≤0.15 ≤0.030 ≤0.030 ≤0.50 ≤0.50 ≥460 ≥360
    X56 ≤0.28 ≤1.40 ≤0.50 ≤0.15 ≤0.030 ≤0.030 ≤0.50 ≤0.50 ≥490 ≥390
    X60 ≤0.28 ≤1.40 ≤0.50 ≤0.15 ≤0.030 ≤0.030 ≤0.50 ≤0.50 ≥520 ≥415
    X65 ≤0.28 ≤1.40 ≤0.50 ≤0.15 ≤0.030 ≤0.030 ≤0.50 ≤0.50 ≥535 ≥450
    X70 ≤0.28 ≤1.40 ≤0.50 ≤0.15 ≤0.030 ≤0.030 ≤0.50 ≤0.50 ≥570 ≥485

    Standard  Steel Grade Chemical Components Mechanical Property
    C Mn Cr Mo P S Ni Cu Tensile Strength (Mpa) Yield Strength(Mpa)
    API Spec 5L PLS2 BN ≤0.24 ≤1.20 ≤0.30 ≤0.15 0.025 0.015 ≤0.30 ≤0.50 415-655 245-450
    X42N ≤0.24 ≤1.20 ≤0.30 ≤0.15 0.025 0.015 ≤0.30 ≤0.50 415-655 290-495
    X46N ≤0.24 ≤1.40 ≤0.30 ≤0.15 0.025 0.015 ≤0.30 ≤0.50 435-655 320-525
    X52N ≤0.24 ≤1.40 ≤0.30 ≤0.15 0.025 0.015 ≤0.30 ≤0.50 460-760 360-530
    X56N ≤0.24 ≤1.40 ≤0.30 ≤0.15 0.025 0.015 ≤0.30 ≤0.50 490-760 390-545
    X60N ≤0.24 ≤1.40 ≤0.50 ≤0.50 0.025 0.015 ≤0.50 ≤0.50 520-760 415-565
    X65Q ≤0.18 ≤1.70 ≤0.50 ≤0.50 0.025 0.015 ≤0.50 ≤0.50 535-760 450-600
    X70Q ≤0.18 ≤1.80 ≤0.50 ≤0.50 0.025 0.015 ≤0.50 ≤0.50 570-760 485-635
