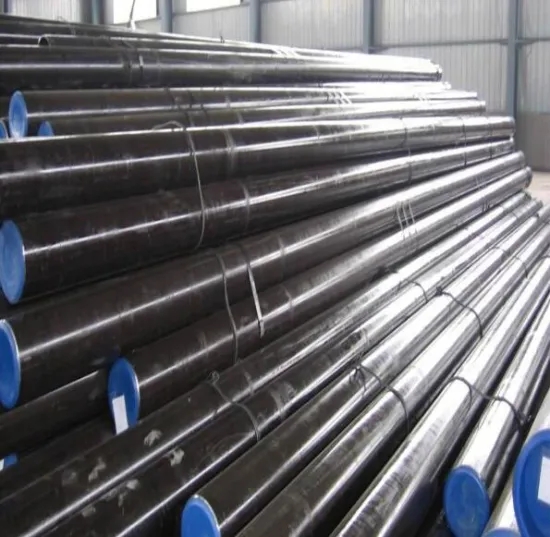

DIN-Carbon-Steel-Pipes
  • Clicks:3708
  • Classification: Products and Projects Steel Pipes & Fittings
  • Brief description:Model NO.: Outer Diameter: 1/8"-36"(10.3mm-914.4mm) Cross-Section Shape: Round Connection Type: Seamless Trademark: CHEMMAH Transport Package: Black Paint, Bevel Send, End Caps Specification: 426mm Origin: China HS Code: 7304193000
 [←]  API-5L-Seamless-Steel-Tube
 [→]  API-5L-X70-Psl-1-Pipeline-Pipe
  • Size:
    Outer Diameter: 1/8"-36"(10.3mm-914.4mm)
    Wall Thickness: 1.2mm-80mm
    Length: Random Length, SRL, DRL(4-14M)

    Steel Grade:
    A53 Gr. A, Gr B, A106 GR.A GR.B A333 GR1 GR3 GR6 A335 P1 P2 P5 P11 P12 P22 P9 A213 T2 T5 T11 T12 T22 T9 A210-C

    End: pland ends beveled ends

    Surface: Bare, Black,Lightly oiled, Hot dip galvanized, Varnish coating/Anti rust oil, Protective Coatings, 3PE

    Packing: Nude, Plastic/steel plugs in both ends, Hexagonal bundles of max. 2,000kg with several steel strips, Two tags on each bundle, Wrapped in waterproof paper, PVC sleeve, and sackcloth with several steel strips, Plastic caps.

    ASTM A53 /A106 Chemical Components and Mechanical Property
    Standard  Steel Grade Chemical Components Mechanical Property
    C  Mn P S Cu Ni Cr Mo V Tensile Strength (Mpa) Yield Strength(Mpa) Elongation (Mpa)
    ASTM A53 A ≤0.25 ≤0.95 ≤0.05 ≤0.045 ≤0.40 ≤0.40 ≤0.40 ≤0.15 ≤0.08 ≥330 ≥205 ≥29.5
    B ≤0.30 ≤1.20 ≤0.05 ≤0.045 ≤0.40 ≤0.40 ≤0.40 ≤0.15 ≤0.08 ≥415 ≥240 ≥29.5
    Standard  Steel Grade Chemical Components Mechanical Property
    C  Si Mn P S Cu ,Ni Cr Mo V Tensile Strength (Mpa) Yield Strength(Mpa) Elongation (Mpa)
    ASTM A106 B ≤0.30 ≥0.10 0.29-1.06 ≤0.035 ≤0.035 ≤0.40 ≤0.40 ≤0.15 ≤0.08 ≥415 ≥240 ≥30
    C ≤0.35 ≥0.10 0.29-1.06 ≤0.035 ≤0.035 ≤0.40 ≤0.40 ≤0.15 ≤0.08 ≥485 ≥275 ≥30
